Series 2400 Catalog

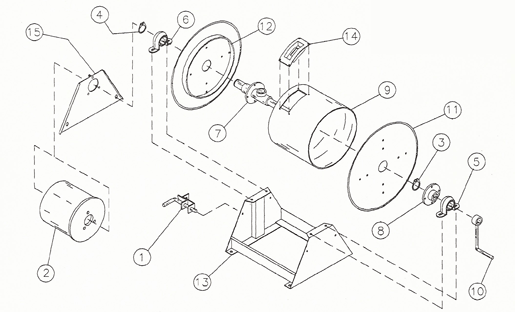

Cord Reel Series 2400

Parts List
* MODEL NUMBER MUST BE KNOWN TO CLARIFY PART NUMBER USE HOSE & CORD CATALOG FOR REPLACEMENTS.

NO.	PART#	DESCRIPTION	MODEL
1	SA-26	LOCKING PIN BRKT.	ALL
2	SA-80	COLLECTOR RING ASSEMBLY	ALL
3	022-05	3100-125 RET. RING	ALL
4	022-06	3100-150 RET. RING	ALL
5	027-01	TRI BEARING 1 1/4	ALL
6	027-02	TRI BEARING 1 1/2	ALL
7	055-32	3007 AXLE CASTING	ALL
8	055-33	3011 AXLE CASTING FLANGE	ALL
9	065-15	2430 REEL DRUM	ALL
10	067-05	2908 CRANK HANDLE	ALL
11	070-33	3022 STEEL DISC 18"	ALL
12	070-44	2910 DRUM SUPPORTS	ALL
13	071-22	2902 REEL BASE 14"	ALL
14	071-66	2420 CABLE DRUM GUIDE	ALL
15	071-67	2405 SLIP RING MOUNT	ALL
